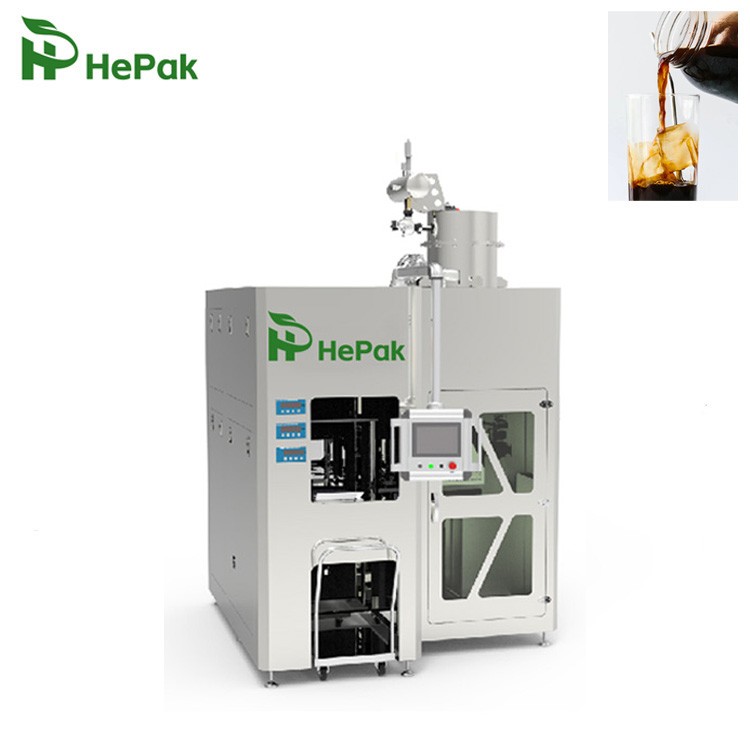

Industrial Coffee Extraction Machine

Brief Introduction of Coffee Extraction Machine

*This is a high-end coffee extraction equipment, an integrated production process from coffee powder raw materials to coffee

cold brew liquid, abandoning the flavor loss caused by the traditional cold brew technology layer by layer membrane filtration.

*The technical principle of this espresso extractor is fast high-pressure extraction, which is more in line with the flavor extraction

of boutique coffee.

*Our cold brew system can meet the needs of boutique cold brew coffee from small coffee studios to large roasting factories.

Equipped Equipment of Coffee Extraction Machine

1. Automatic extraction system

*The espresso extraction machine is made of SUS304 material, with a daily output of 500KG liquid;

*The espresso extractor power is 23kw 380V, and it is composed of automatic feeding system, automatic heating system,

extraction pressurization system, and pipe gas control system.

2.Automatic feeding system

*SUS304 tank, volume 60L;

*Negative pressure pump power 1.5kw 380V, backflush system, dust removal system, pneumatic butterfly valve, air hammer;

*Used with stainless steel pipes, it can provide stable powder flow.

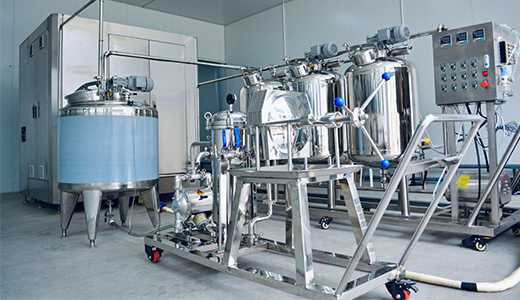

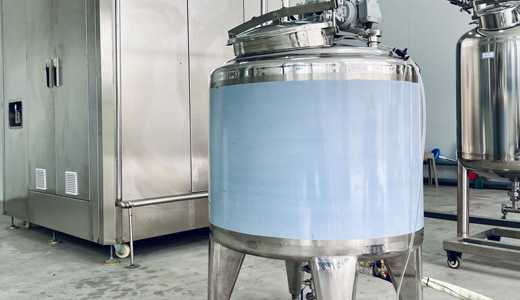

3.Material cooling system

Miller plate jacketed inner and outer SUS304 tank, volume 1000L;

Stirring motor 1.5kw 380V;

Used with diaphragm pump, it can provide stable pressure and flow into water.

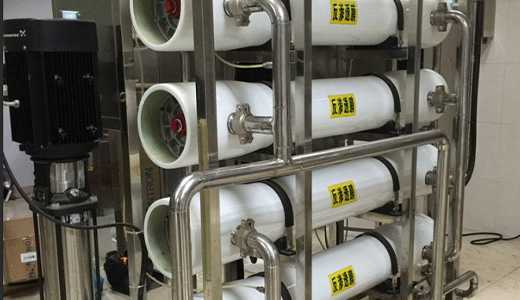

4.Pure water machine 1T/H- (coffee liquid supporting pure water system)

Automatic timed backwashing adopts TM56 control;

Raw water pump: 0.75KW, booster pump motor 2.2kw 380V;

Matched with American Hydra 4040 reverse osmosis membrane.

5.CIP cleaning system

SUS304 tank, volume 200L*3;

Heating power 3kw*2*3 380V;

Used with stainless steel pipeline pump, it can provide stable CIP cleaning.
