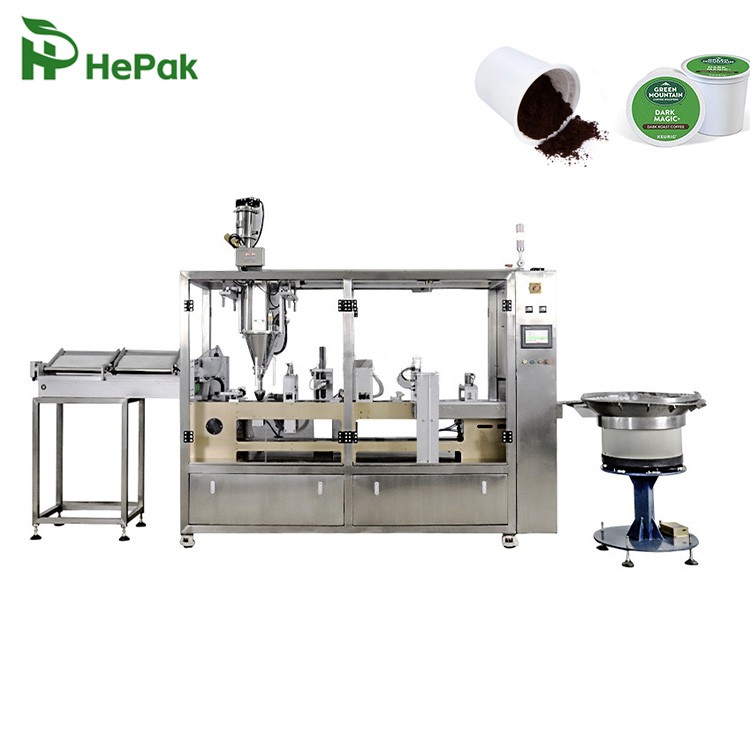

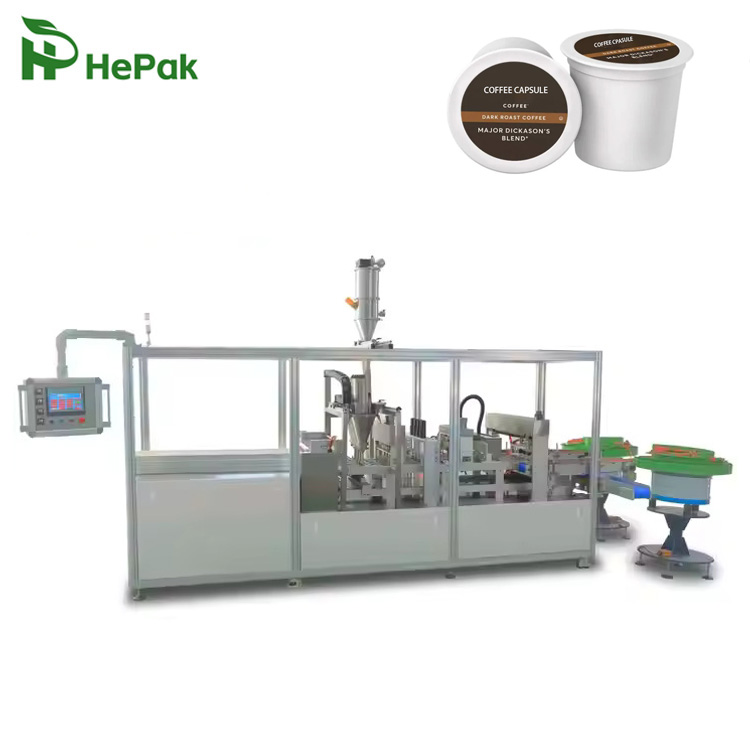

K Cup Filling Machine

1.Introduction of K cup filling machine:

This professional machine is designed specifically for filling coffee capsules, enabling you to effortlessly produce capsules

that suit your flavor preferences and requirements. All that's needed is coffee powder, empty capsules, and aluminum foil lids,

and by following a few simple steps, you can quickly create high-quality coffee capsules.

With the ability to produce 80-100 K Cups  per minute, this machine significantly boosts production efficiency.

Moreover, its versatility extends beyond coffee production—it can also be used to produce tea, milk powder, instant powder,

and various other granular powdered products.

Additionally, with a host of user-friendly design features, the machine is exceptionally easy to clean and maintain.

2.Technical parameters of K cup filling sealing machine

Below is an overview of potential parameters for K Cup filling machine. Keep in mind that these values

might differ depending on the configuration and customization options chosen.

3.Functions of K cup capsules filling machine：

Standard functions ：

• Vertical cup loading station/Horizontal K Cup loading station.

• Sensors for empty cups and for pre-cut lids: Without a cup, no filling occurs; without a lid, sealing is skipped.

• Servo motor and compressed filling head: Delivers high filling precision, with the compressed filling head

   pressing the powder during the filling process.

• Nitrogen plate: Comes with a nitrogen connection system that can be directly linked to your nitrogen generator.

• Anti-static features: Minimizes static electricity during filling, thereby reducing dust formation.

• Clean edge handling and powder pressing; secondary sealing and output: The machine automatically applies

  a second seal on the capsule and ejects the cup.

• PLC controller: Features an English-language interface to adjust machine parameters such as

  filling volume, sealing temperature, and screw speed.

Optional functions：

• Auger lifter conveyor

• Flavor pump system: This system precisely dispenses 0.01 ml of flavor liquid into each K-Cup in real time.

• Checker weigher system

• Customized conveyor belt and flip-flop mechanism: Automatically counts and transitions to

  the next box, making it ideal for bulk packaging such as a 96-count box.

• Printer for lot number labeling

• Internet-based remote support

• Paper box packaging machine

4. Features of K cup filling machine

• High stability: Rational designed Machine can work 24 hours continuously;

• High accuracy: filling accuracy is stable at ±0.15g, and very stable working;

• Smart working: machines incorporate a variety of sensors that allows it to detect and smartly decide how to respond to the presence or

  absence of cups, lids, coffee, air pressure, temperature, position, etc.

• Easy to Use: For extensive control of any internal parameters, the machine features an easy to use touch screen interface (HMI);

• Control system: Industrial japan PLC controller Omron. Positioning system driven by stepper motors with feedback. Touch screen (HMI)

  Omron. All in English language. (If you can translate for us, we can put your language inside)

5.Application of K cup filling sealing machine

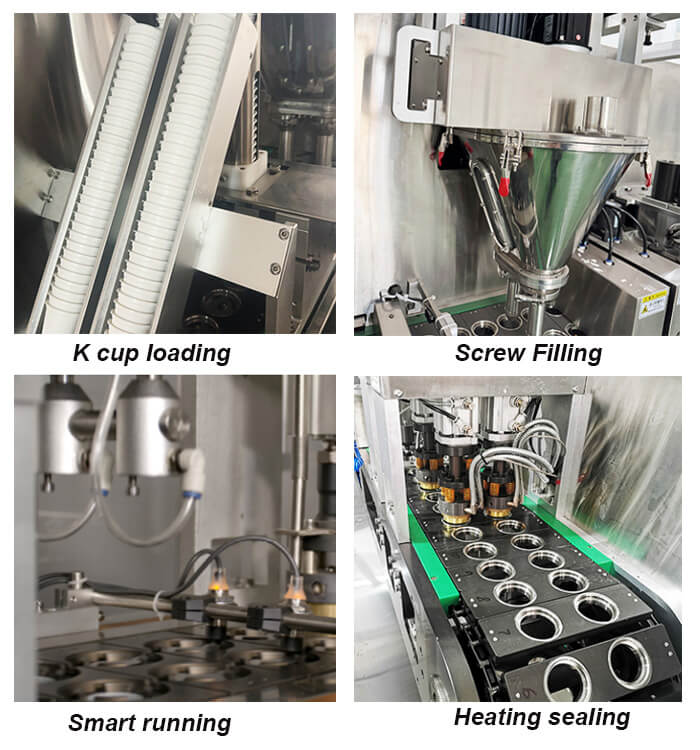

6.Main working process steps

• Vertical Cup Loading device:PLC control system,supports different types of cups,special cup separating device

• Screw Filling:High-accuracy filling system.Schneider Servo Motors control the coffee filling augers

• Smart Running:No capsule no filling, no lids no sealing,if there is a continous lack of cups in the mold, the machine will stop and raise the alarm.

• Heat Sealing :Rapid sealing technology can protect the capsules and sealing materials,sealing temperature can be adjusted from 0-400 degree Celsius.

This K Cup filling and sealing machine, with its versatile features, caters to coffee production requirements

across different sizes and types, making it a top choice for coffee producers.
